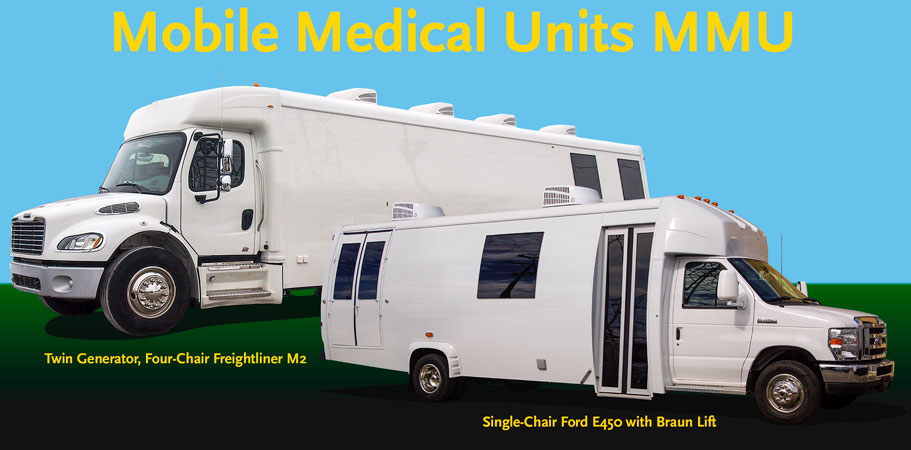

Mobile Medical Units MMU: blood donor & vaccination buses, aka bloodmobiles, are potentially life-saving vehicles. They provide the ability to reach potential blood donors that brick & mortar centers cannot. The demand for blood donor vehicles has increased and to meet these demands, Best Bus Sales has rolled out two very special blood donor buses.
The E4-290 can be configured as a single patient chair bus with wheelchair lift, or three patient chairs without a wheelchair lift.
The M2‑450 is a four patient chair bus with front & rear doors. Both vehicles are built smart & tough with easy to clean surfaces, wi-fi, and independent generator(s). Also available is an M2 chassis with under-cabin storage.
E4-290 Single Chair Bloodmobile with Wheelchair Lift | E4-290 Bloodmobile

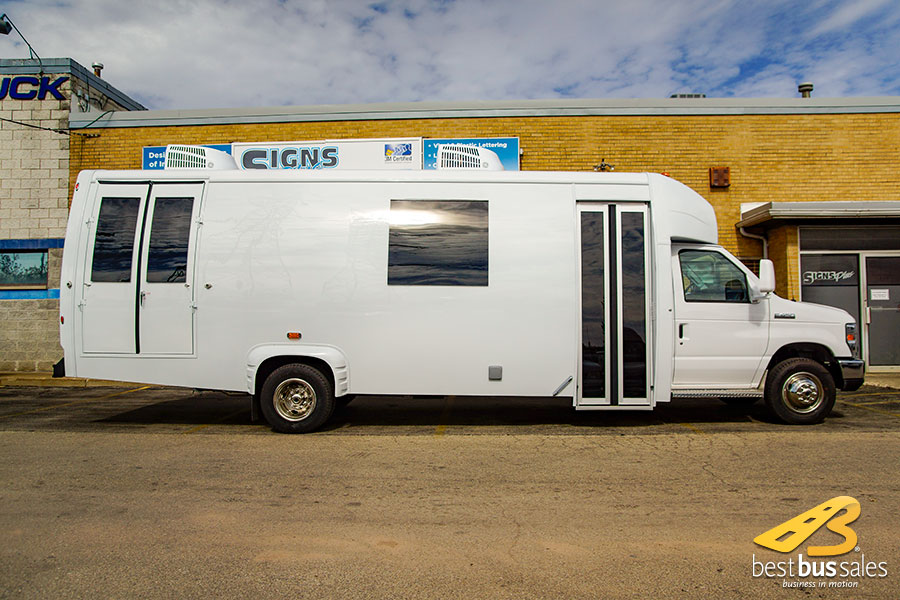

Passenger side view E4-290 | E4-290 Bloodmobile

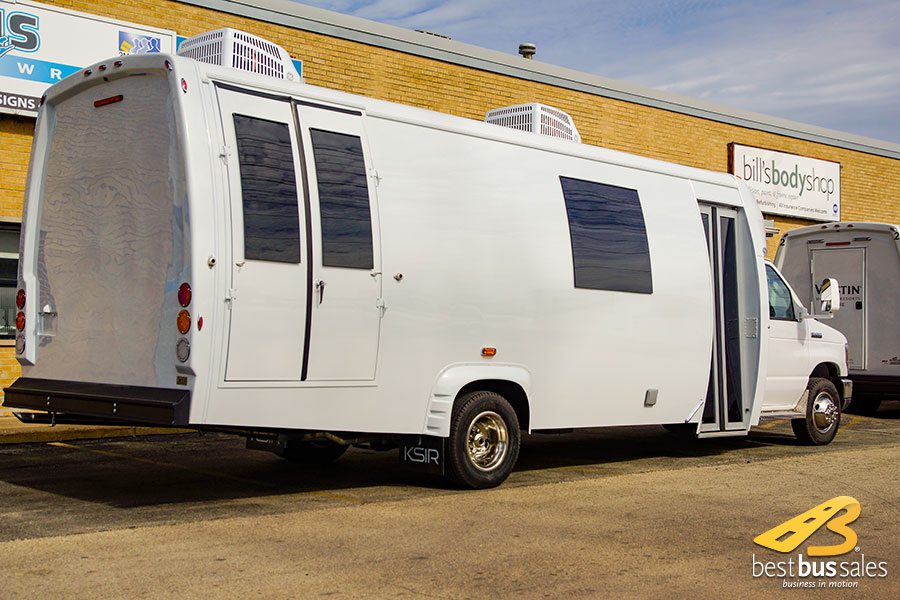

3/4 rear end passenger side view | E4-290 Bloodmobile

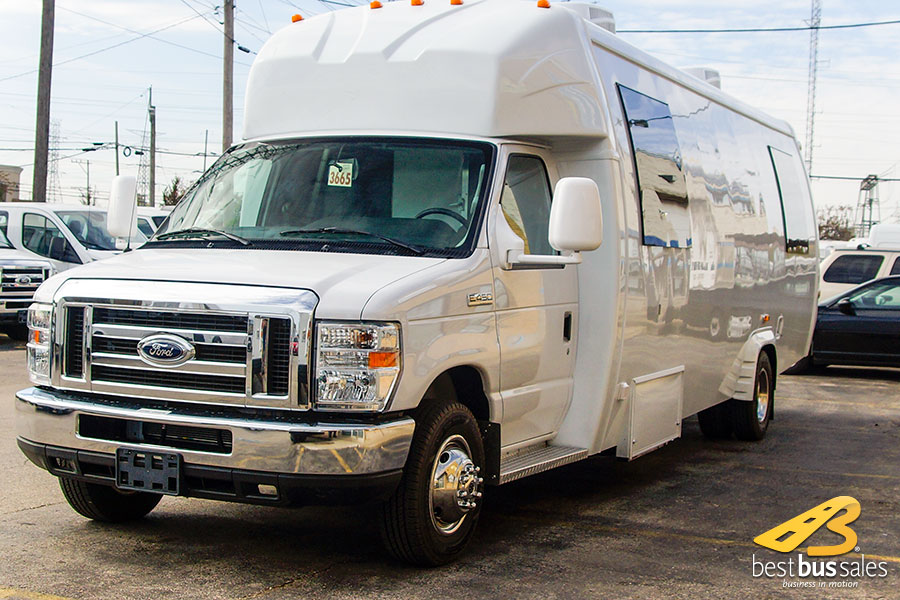

Built of the sturdy Ford E450 chassis | E4-290 Bloodmobile

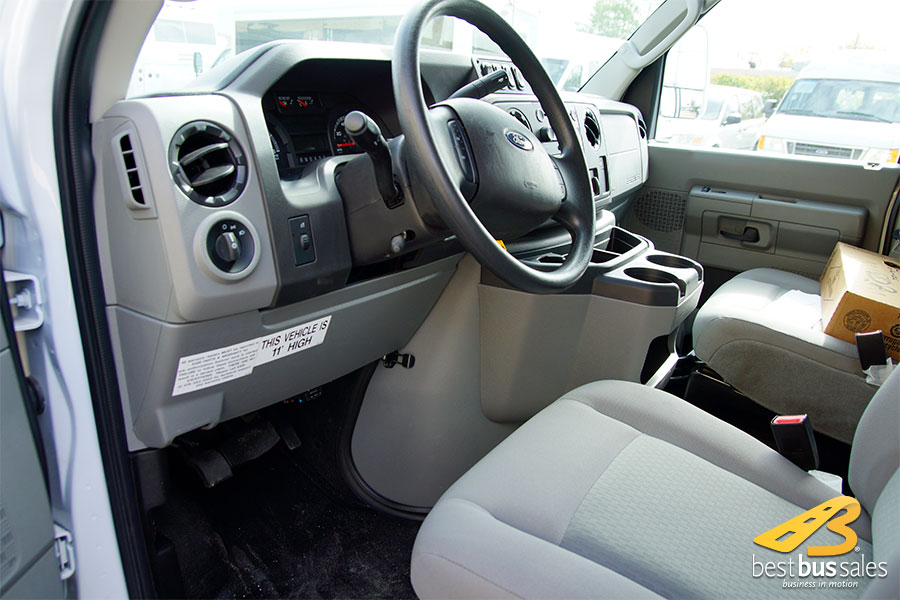

Cockpit and copilot seat | E4-290 Bloodmobile

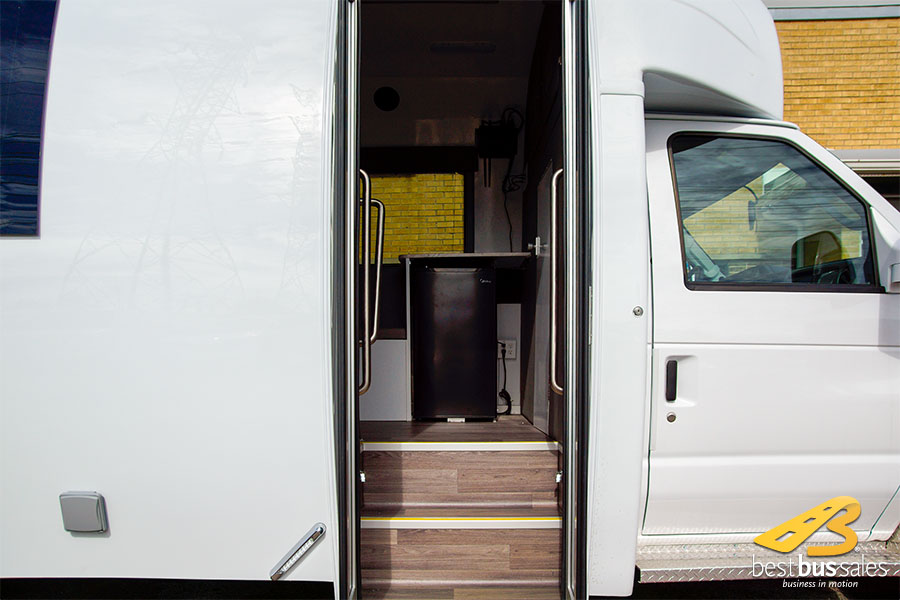

Passenger boarding entrance stairwell | E4-290 Bloodmobile

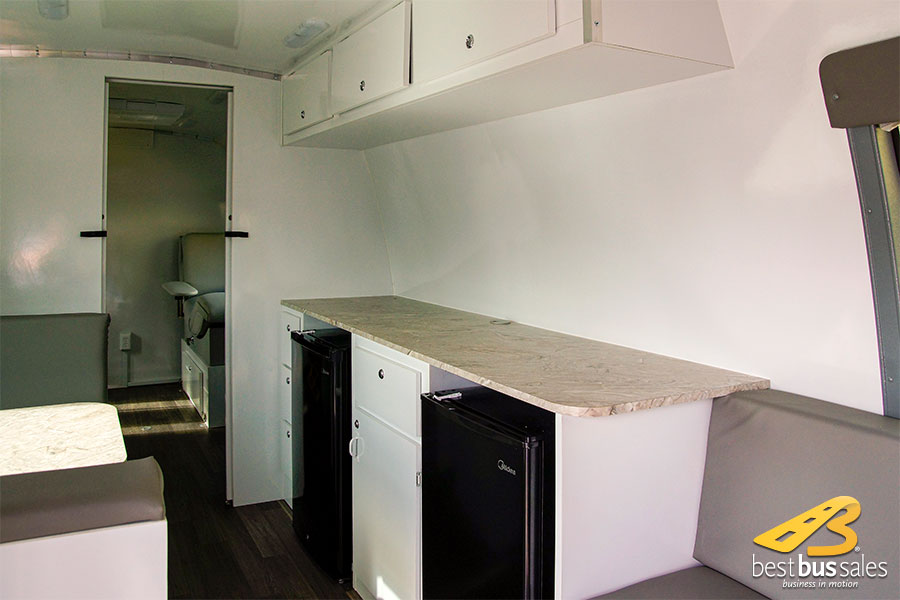

Overhead cabinets, countertop, and refrigerators | E4-290 Bloodmobile

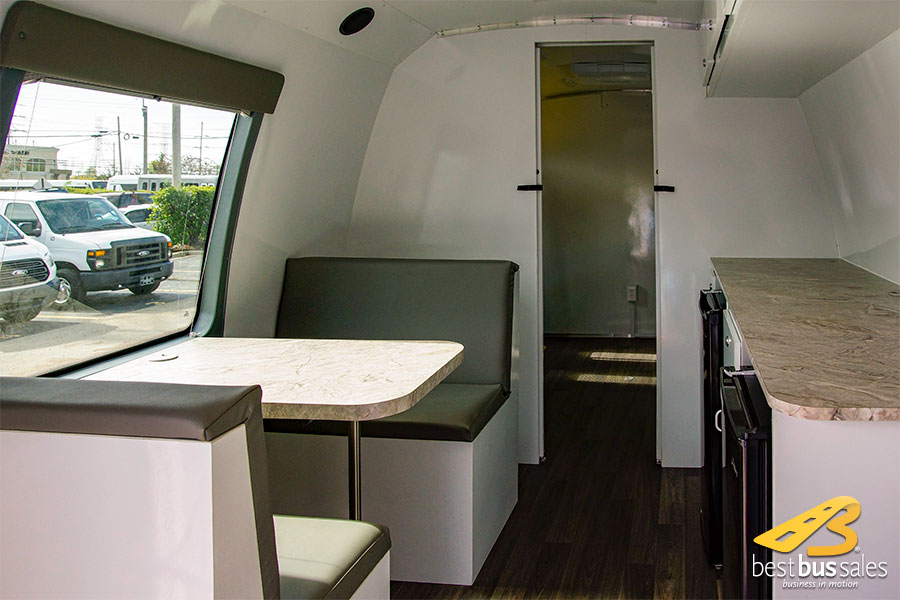

Conference table | E4-290 Bloodmobile

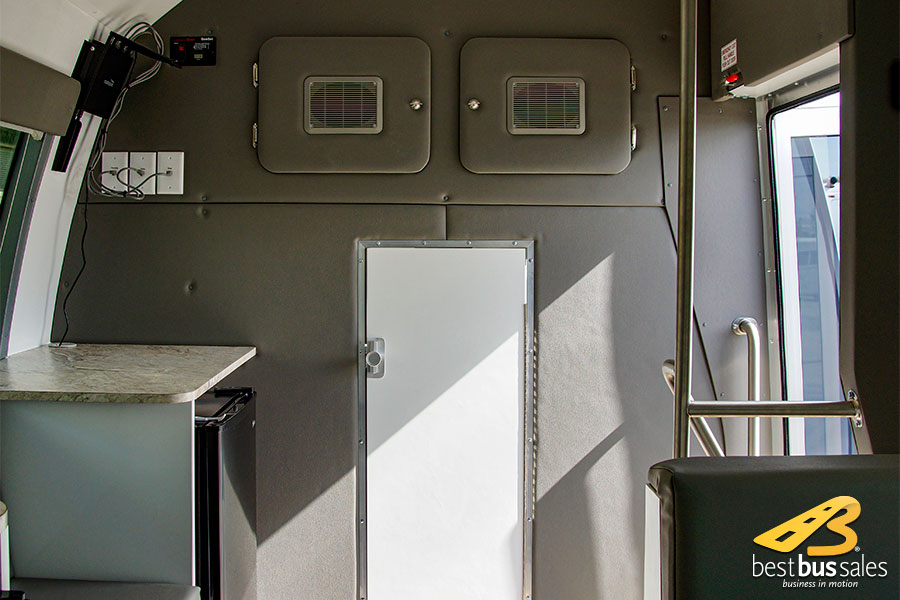

Enclosed driver's compartment | E4-290 Bloodmobile

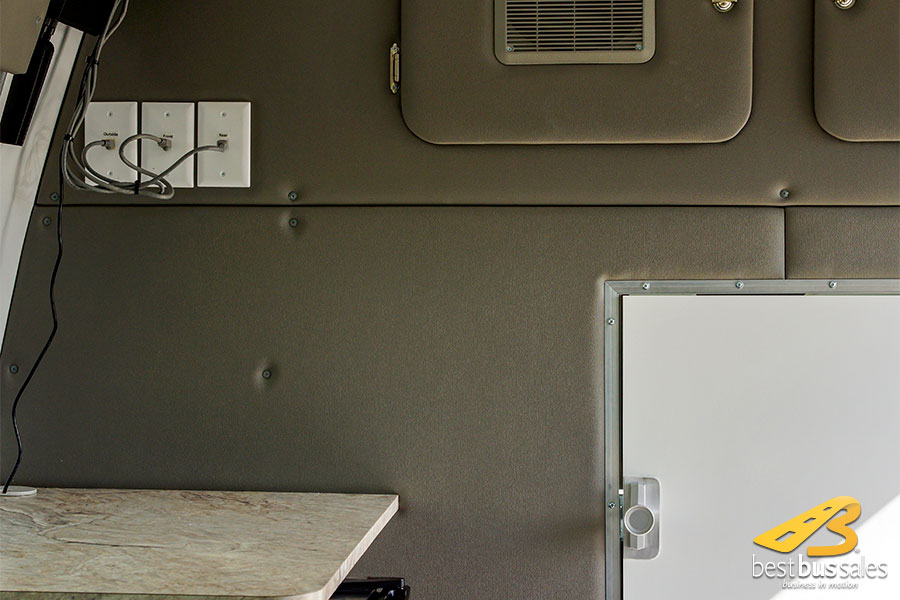

Cat 6 network connections | E4-290 Bloodmobile

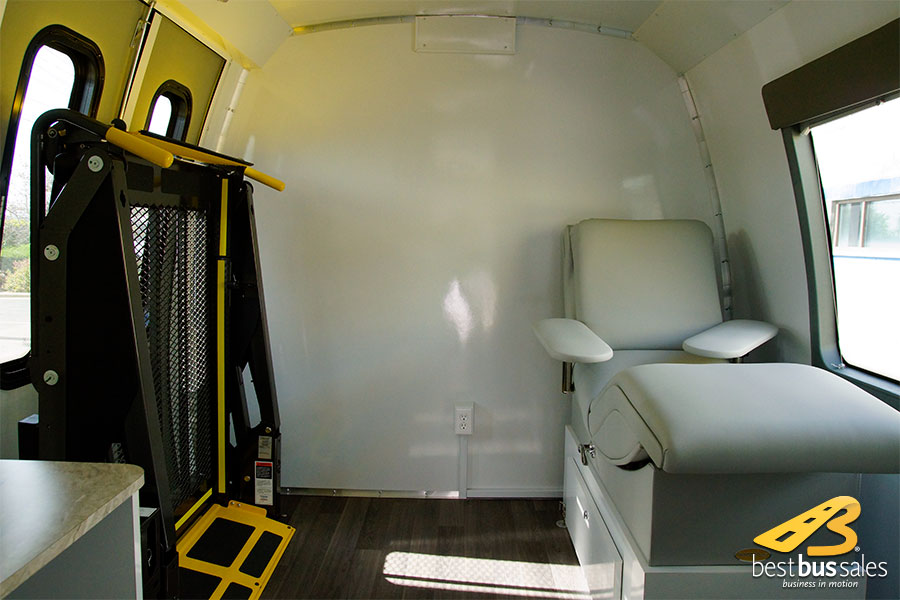

Wheelchair lift & patient chair | E4-290 Bloodmobile

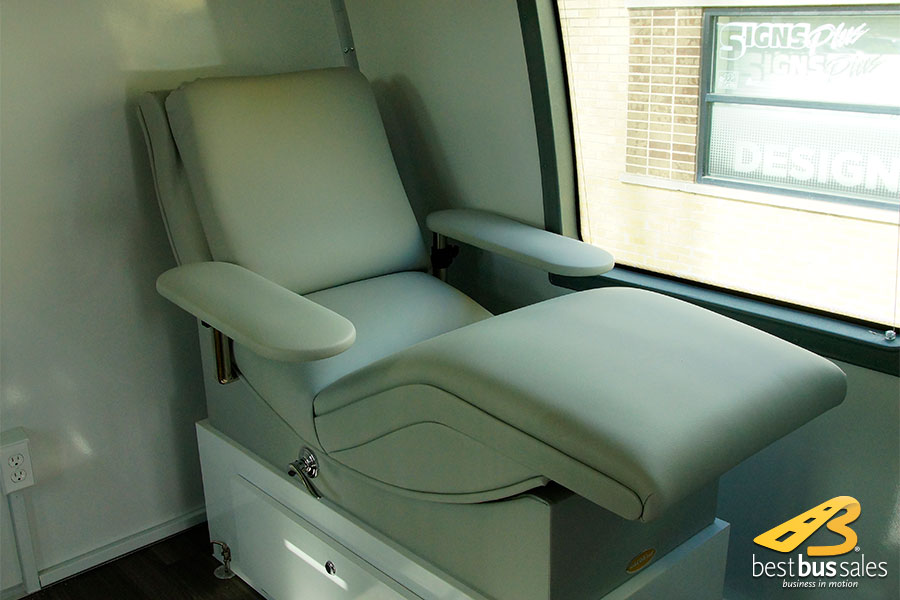

Reclining patient chair | E4-290 Bloodmobile

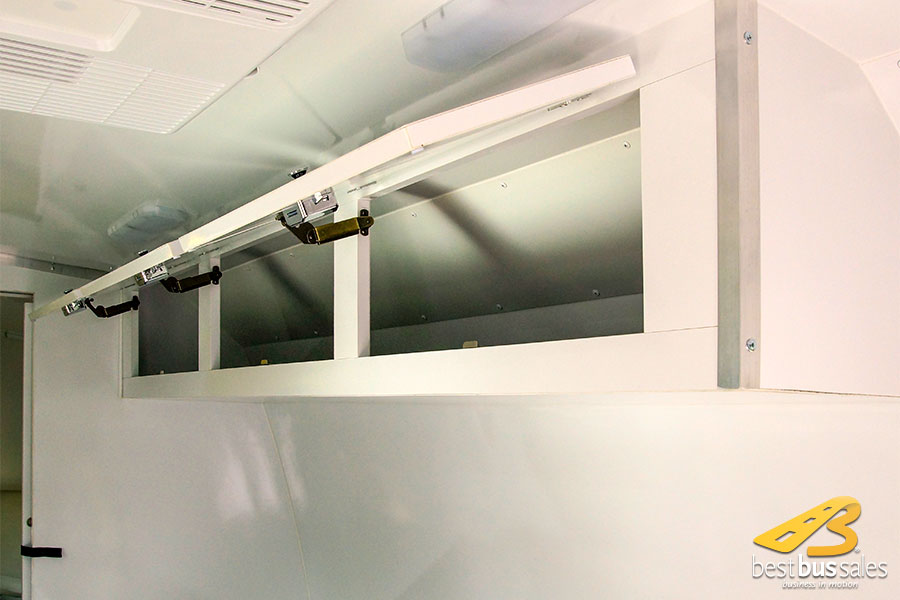

Overhead cabinet storage | E4-290 Bloodmobile

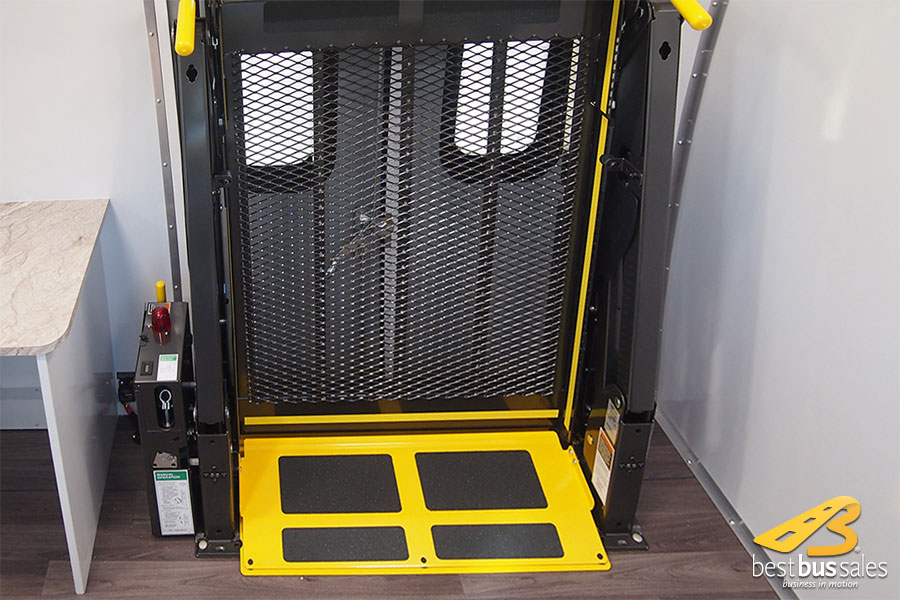

Braun wheelchair lift | E4-290 Bloodmobile

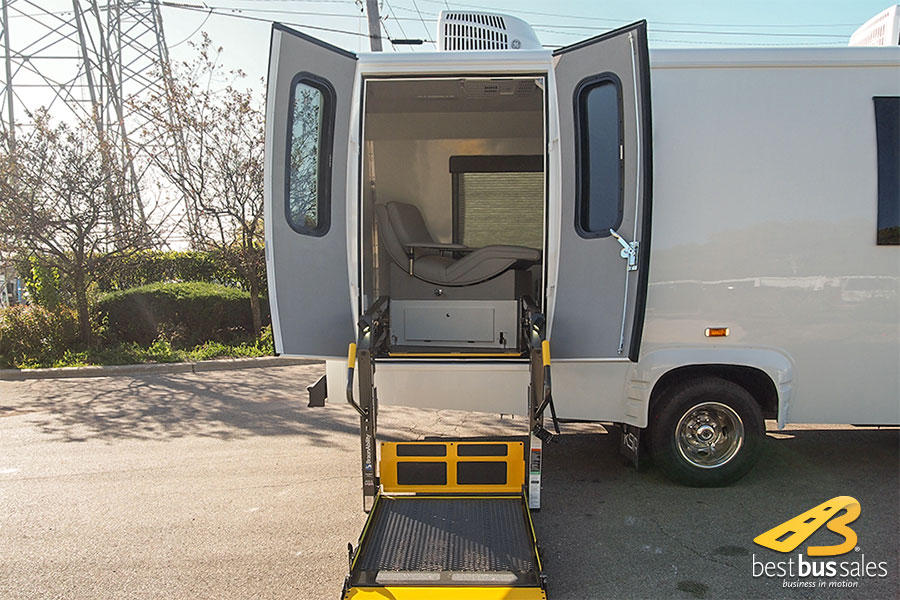

Wheelchair lift lowered for boarding | E4-290 Bloodmobile
E4-290 Single Chair Bloodmobile Features
Installed Features
- Dacor® blood draw & bloodmobile chair
- Model E4-290 29' E-450 212" WB
- Electric Passenger Entry Door (standard)
- Exterior Passenger Entrance Door Key
- Dark Limo Tint on Entry Door
- Stainless Steel Wheel Inserts
- Aluminum Running Boards under Cab Doors (both sides)
- Sumo Springs Front & Rear
Mirrors
- Sail Mount Heated Power Mirrors
Windows
- Frameless Solid Windows–KSIR® Standard Windows
- Night Shades w/Valance (per window)
Lighting
- Additional Stepwell Light (LED)
- Rear Center Mount Brake Light (LED)
- Mid-Ship Turn/Marker Lights (LED)
- Exterior Light at Passenger Entry Door ( LED Flood Light)
- LED ceiling lights
- 110-volt outlets
- 50-amp converter with shore power and ATS
- 7K gas generator on slide out
- Storage cabinet above driver for electrical
- Center wall with accordion door
Installed Options
- Double bench seating with table
- 110-volt, 13,500 BTU Roof AC with heat
- Tall cabinet with shelves
- Wall behind driver with locking door
- Refrigerator/printer cabinet
- Exam table
- Cat 5 cable and boxes
- Rear desk with cabinets
- Storage for folding chair
- In-cabinet freezer with countertop and medical refrigerator
- Locking overhead cabinets & side cabinets
- Trash can behind entry door
- Standard Rear Bumper with Anti-Ride
Electrical
- Cradlepoint AER 2200 1200 mbps Edge Router
- Ford OEM AM/FM/CD with four speakers
- Backup Camera with Monitor Built into Rear View Mirror
Interior
- Vertical Right-hand Entry Grab Rail
- Filon interior walls & ceiling
- Gerflor Yellowstone flooring
- Non-retractable Seat Belts (4)
- Ford OEM Highback Captain Driver Seat
- Ford OEM Highback Captain Copilot Seat
Safety
- Fire Extinguisher
- Emergency Triangle Kit
- Backup Alarm
Wheelchair Lift
- Wheelchair Interlock (required for any lift)
- Contoured double wheelchair doors (curved to match body)
- Braun Century 2 NCL wheelchair lift with 34" × 51" platform
Exterior
- White Full Body Paint with Clear Coat (standard build/no graphics)
Single Station Mobile Blood Draw/Vaccination Bus
Layout & Dimensions

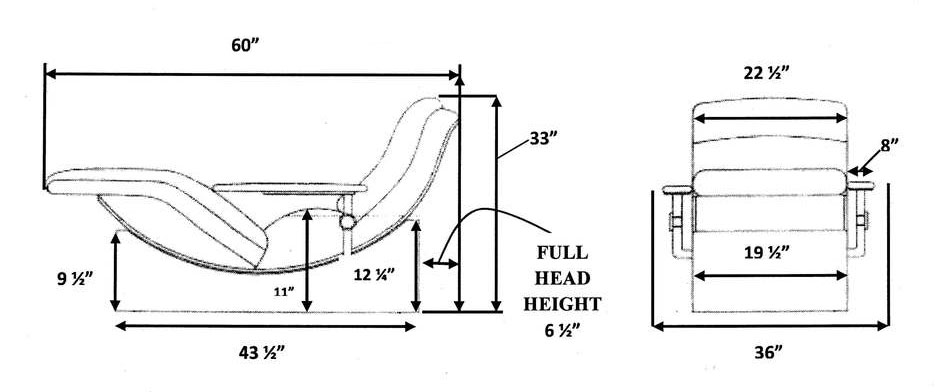

Dacor® Chair Dimensions

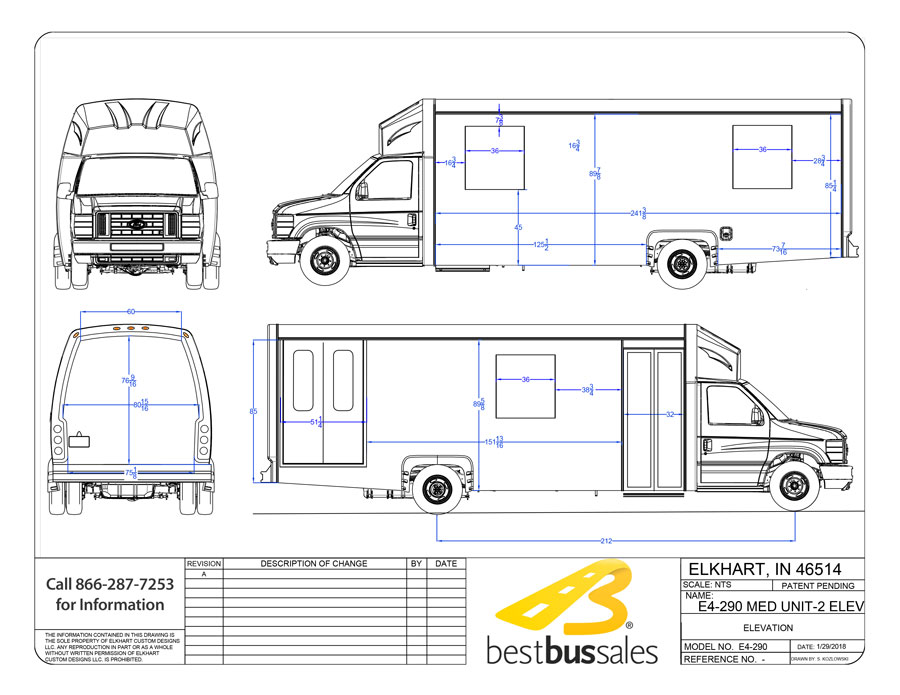

E4-290 Bloodmobile Exterior

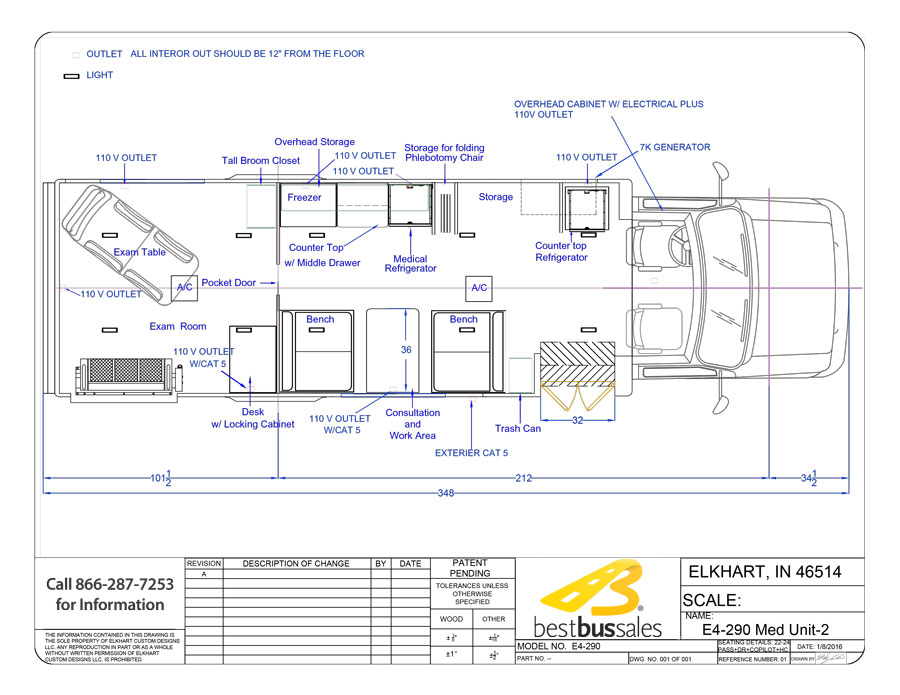

E4-290 1-Chair with W.C. Lift Bloodmobile Interior

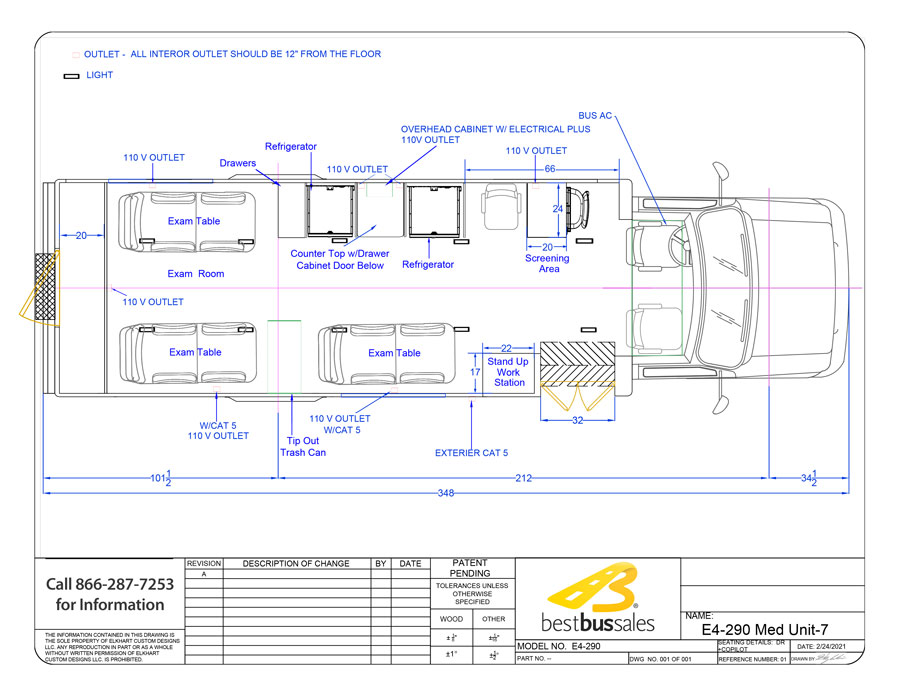

E4-290 3-Chair/NO Lift Bloodmobile Interior

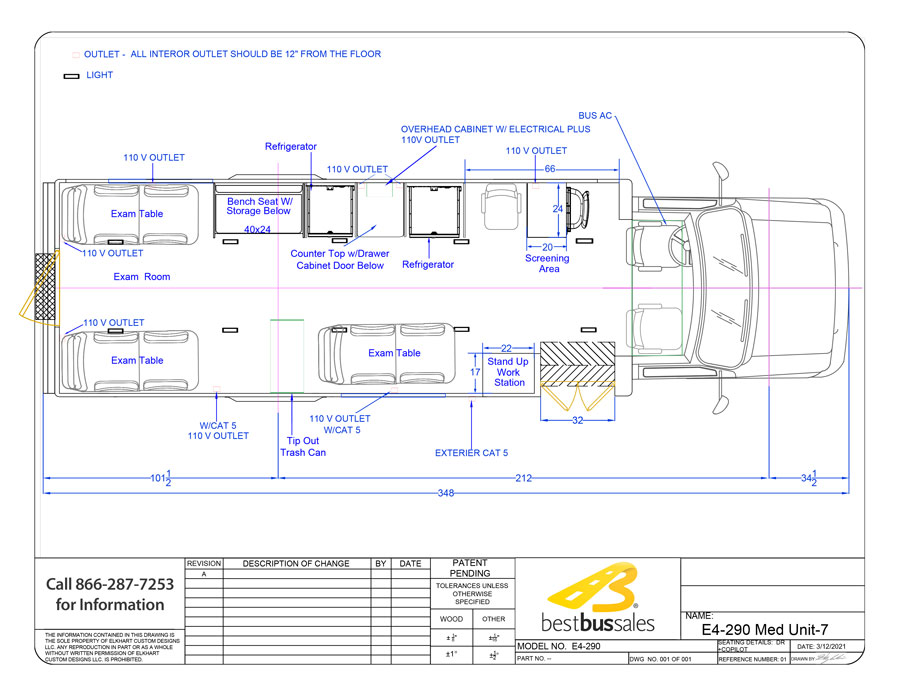

E4-290 3-Chair/NO Lift Med Unit

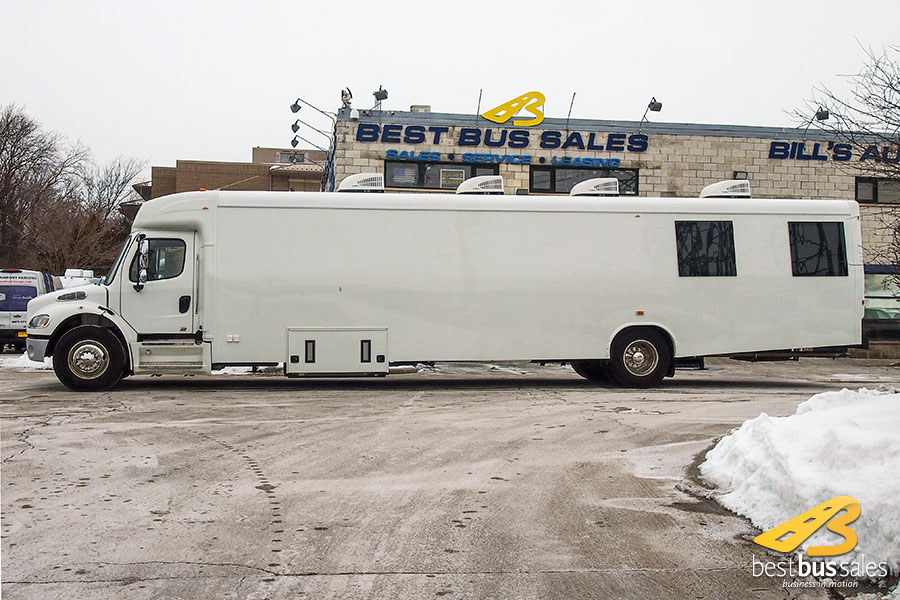

M2-450 Four-Chair Bloodmobile | M2-450 Bloodmobile
Front & rear passenger doors | M2-450 Bloodmobile

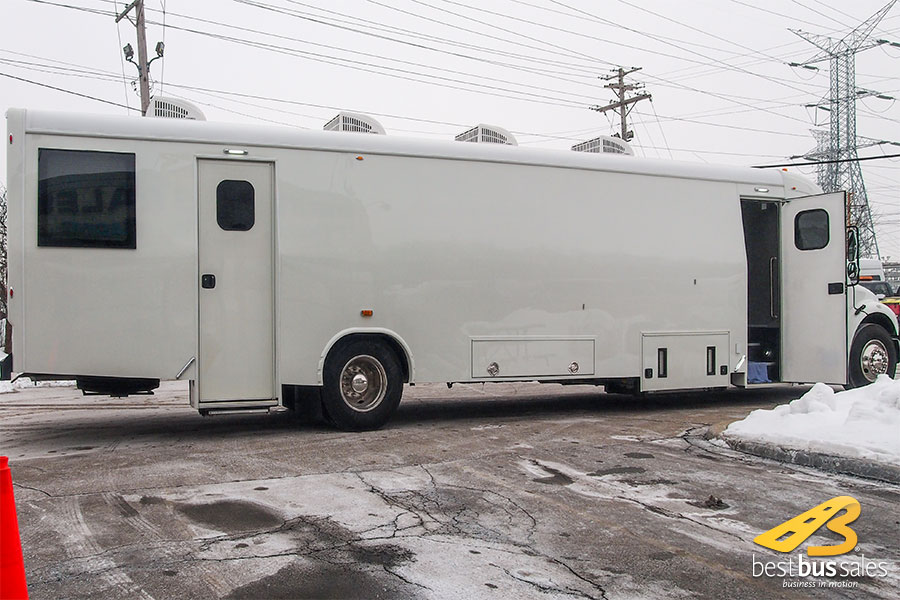

Driver side generator, four rooftop AC units | M2-450 Bloodmobile

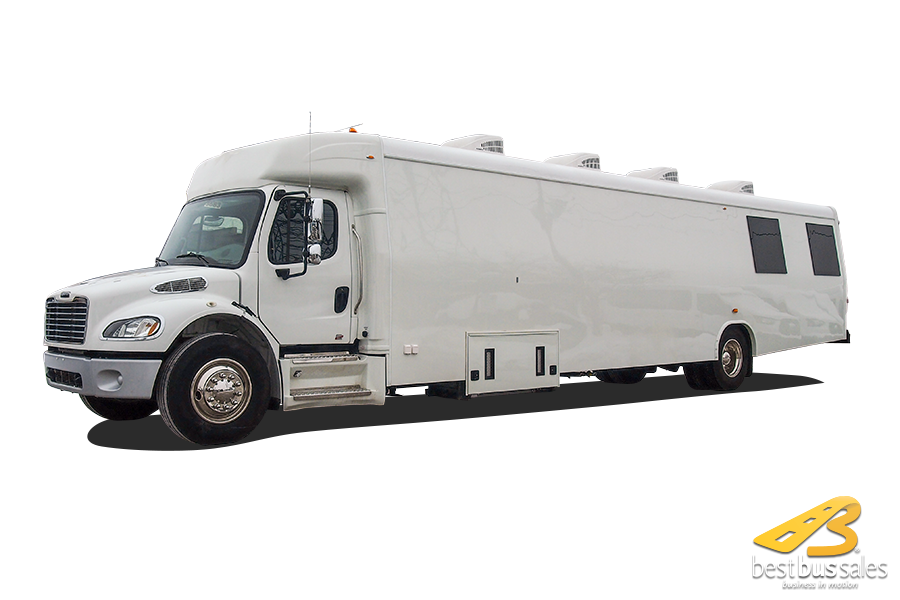

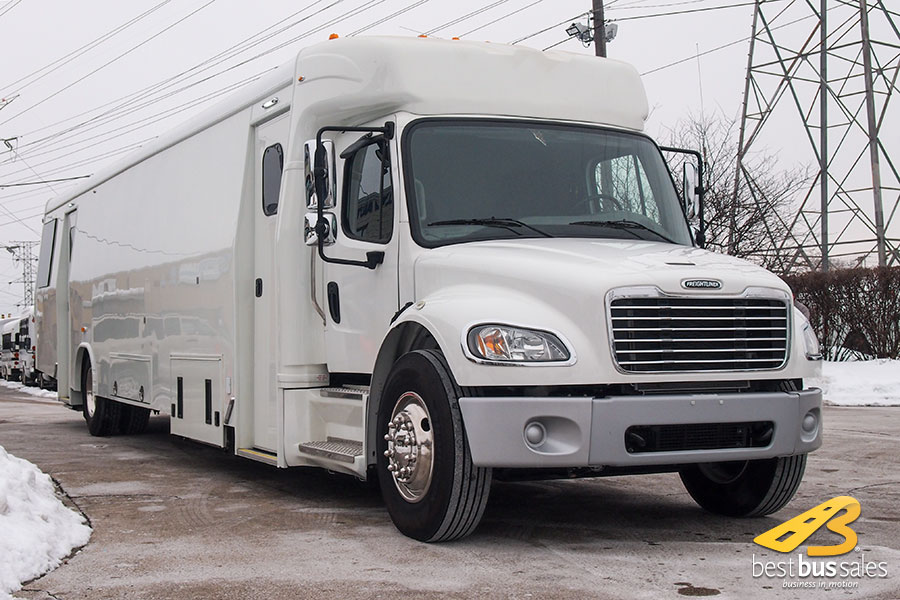

3/4 view front & passenger side | M2-450 Bloodmobile

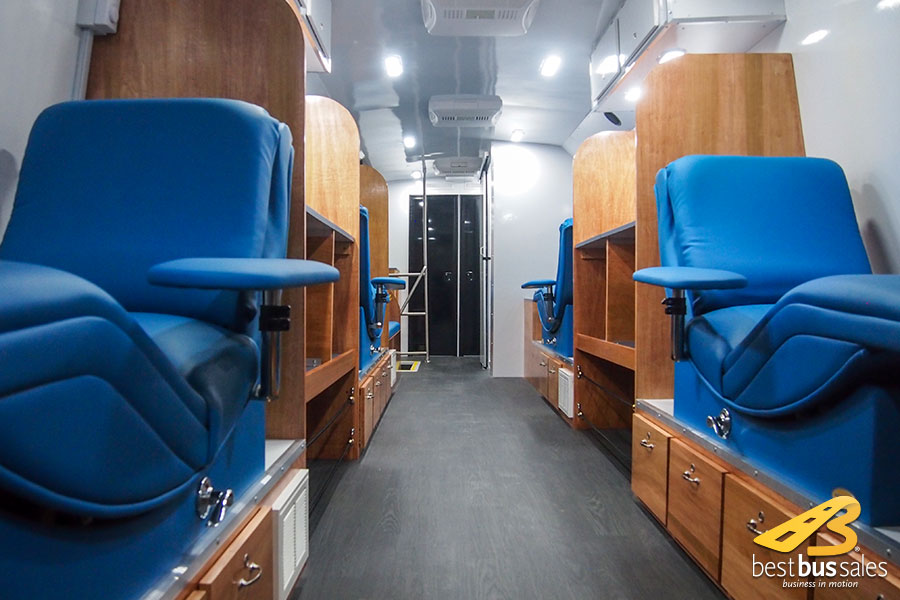

Interior view with four Dacor® patient chairs | M2-450 Bloodmobile

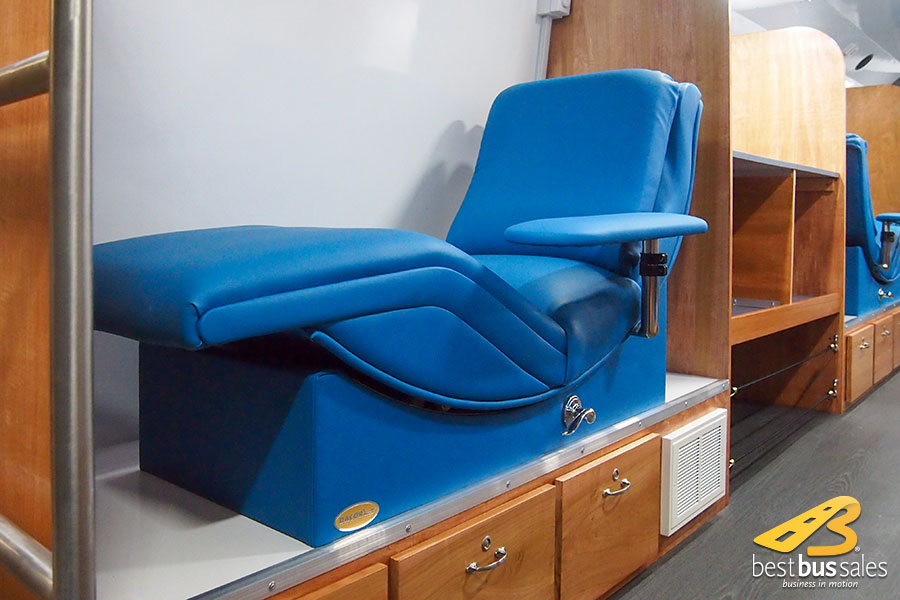

Dacor® reclining patient chair | M2-450 Bloodmobile

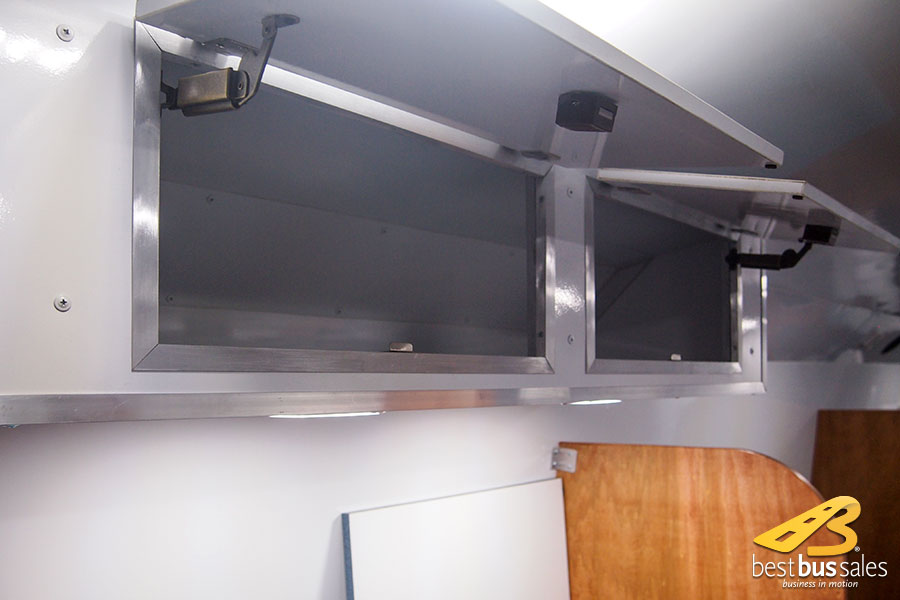

Overhead storage cabinets | M2-450 Bloodmobile

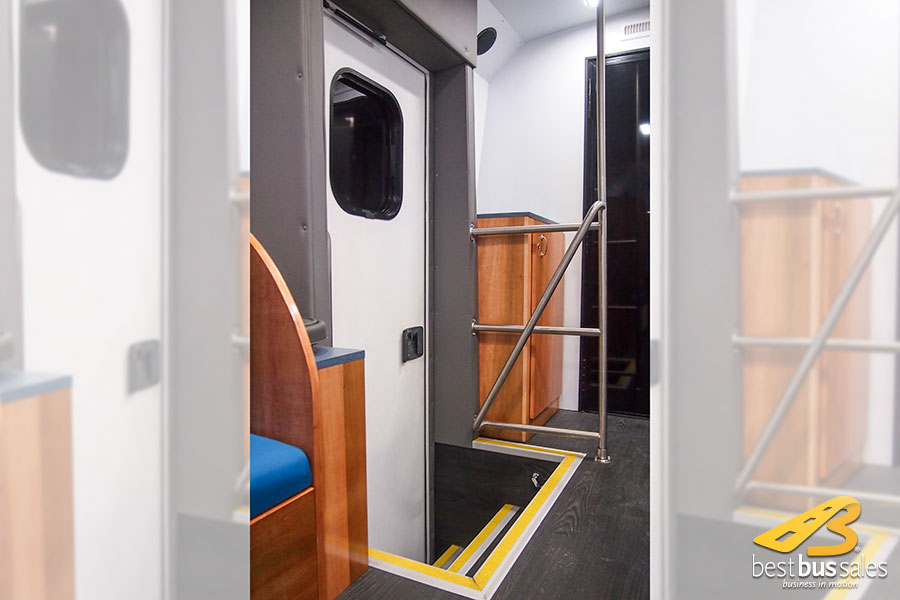

Rear entrance/exit door | M2-450 Bloodmobile

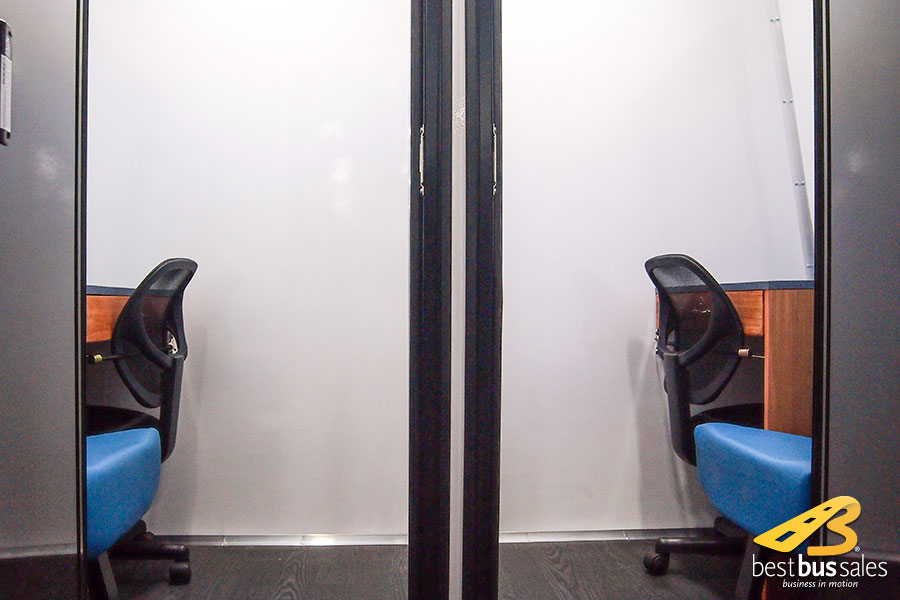

Twin conference rooms at rear of bus | M2-450 Bloodmobile

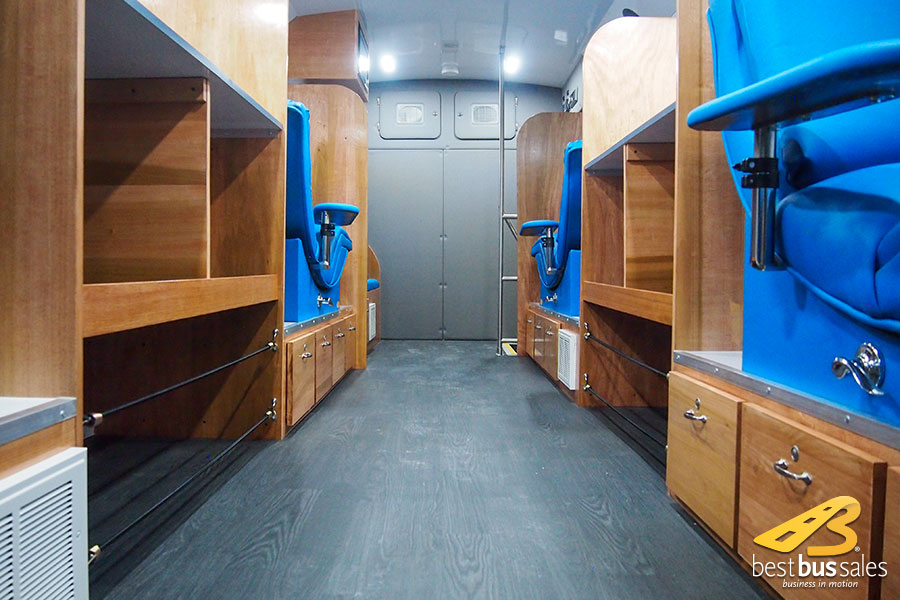

Back to front interior view | M2-450 Bloodmobile

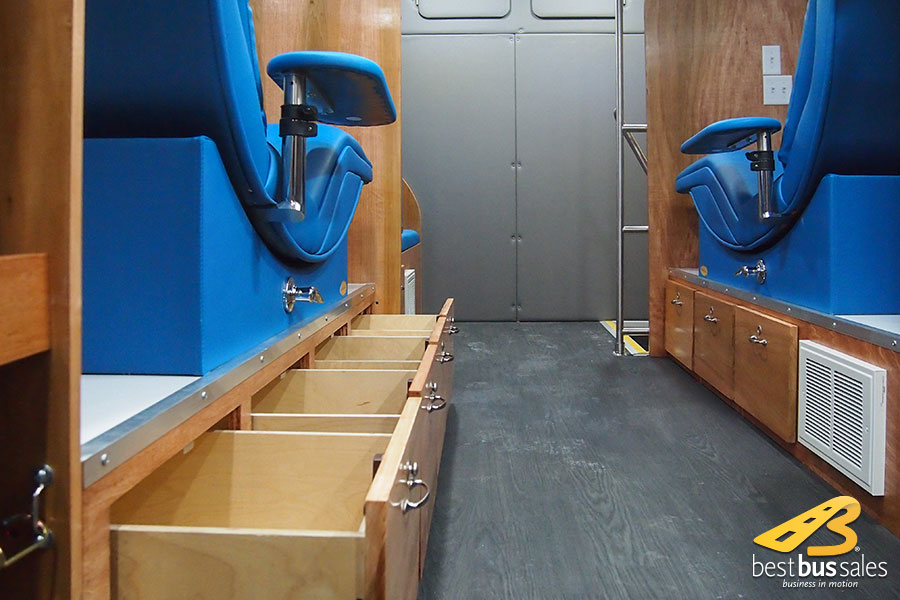

Storage cabinets | M2-450 Bloodmobile

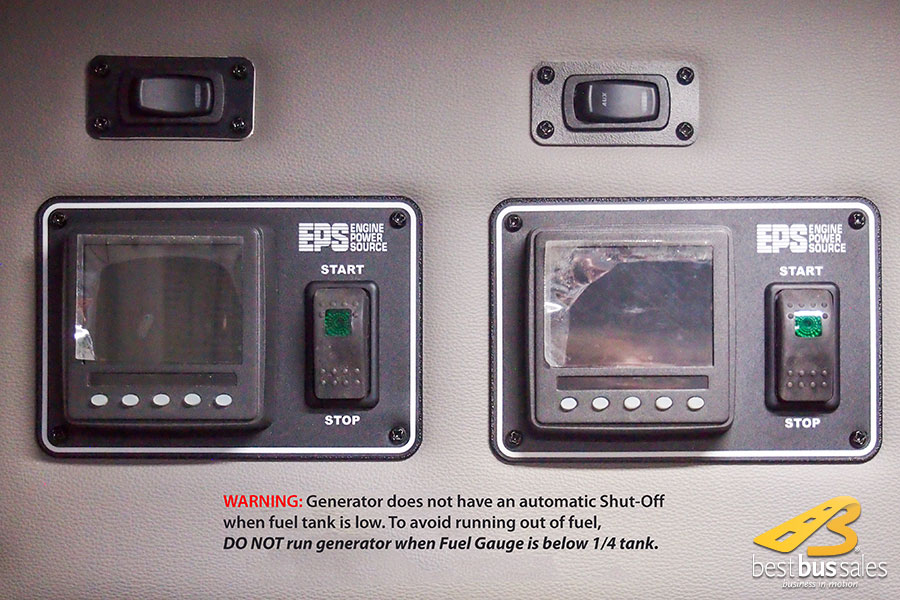

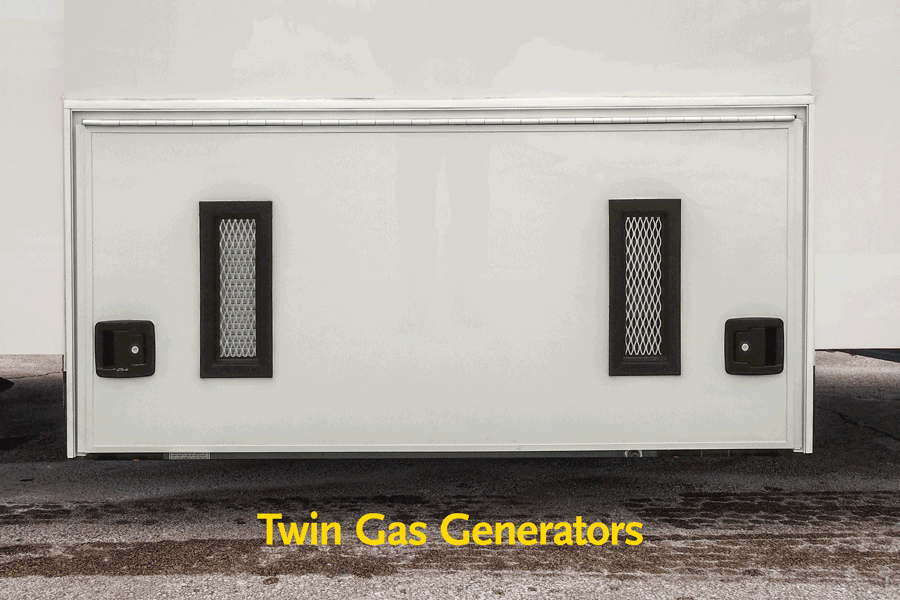

Generator with animated cover | M2-450 Bloodmobile
M2-450 Four-Chair Bloodmobile Features
Installed Features
- Dacor® blood draw & bloodmobile chairs (4)
- Model M2-450 45'–341" WB
- Heavy Tint on Entry Door
- Stainless Steel Hub and Lug Nut Covers (Aluminum Wheels are Std.)
- 22-1/2" Spare Tire and Steel Wheel
- Spare Tire Mount
- 1550, 110 Roof top AC units with thermostat
- Diesel gen 20 k with remote start
- Front RV style door with window
- RV style entry door with window behind axle
- Wall to block off cab
- Storage above driver for all electrical
- 50-amp shore power with ATS
- 50-amp converter box with breakers / with 110 outlets throughout bus (13)
- Locking fuel caps
- 30' shore power cord 50 amp
- Exterior outlet with weather tight cover
- LED Interior lighting
- Dedicated battery for generator
- Flip down step for rear door
- Carbon monoxide detector
- Smoke detector
- Bench seat with storage below
- Steno chair with arms
- Solid wood upper cabinet with doors–both sides of unit
- Solid wood Desk with pull out drawer
- 3.6 c.f. 110-volt refrigerator in cabinet
- Task lighting throughout bus
- Rear radio with 8 speakers and remote volume control
- Leveling system
- Blood donor bed with arm rest
- Twin office with 20" doors
- 1500-watt base board electric heater with thermostat
- 750-watt base board electric heater with thermostat
- Integrated trash cans in donor stations
- Hooks to tie down chairs for travel
- Single office with sliding door
Windows
- Frameless Solid Windows–Standard
- Night Shades with Valance (Per Window)
- Black Interior Window Shrouds (Full Set per Bus)
Lighting
- Additional Stepwell Light (LED)
- Exterior Light at Passenger Entry Door (LED Flood Light)
- Mid-Ship Turn/Marker Lights (LED) Required by FMVSS
- Rear Center Mounted Additional Brake Light (LED)
- Exterior scene lights
Storage, Luggage, Roof Hatches, Rear Doors
- Underfloor Storage Bins (12"H × 48"L × 18"Depth)
- Standard Rear Bumper with Anti Ride Feature
Electrical
- Fast Idle (Std on Chassis)
- Rotary Disconnect Switch
Radios / TV Systems / Monitors
- AM/FM/CD with (2) Speakers
- PA System & Back up Camera
- Zone Defense System with 7"LCD Monitor and (1) Camera (Back Up)
Interior
- Vertical Right Hand Entry Grab Rail
Walls & Ceiling
- Filon Walls and Ceiling
Flooring
- Altro Manor Oak
Driver/Copilot Seats
- Driver Seat: Freightliner OEM HB Air Suspension–Gray Fabric
- Co Pilot Seat: Freightliner OEM HB Air Suspension–Gray Fabric
Safety Equipment
- Fire Extinguisher
- 25 Unit First Aid Kit
- Emergency Triangle Kit
- Back Up Alarm
- Fast Idle (Std on Chassis)
Paint and Graphics
- White Full Body Paint with Clear Coat (Standard)
- No Stripe (Plain White Bus)
Four Chair Bloodmobile / Vaccination Bus
Layout & Dimensions
Dacor® Chair Dimensions

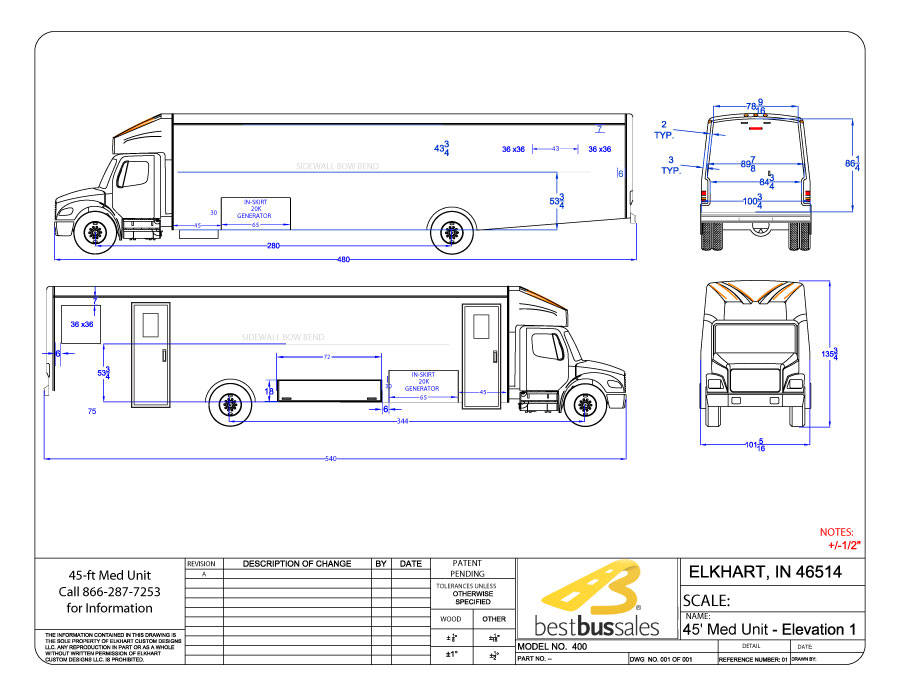

M2-450 45-ft Bloodmobile Exterior

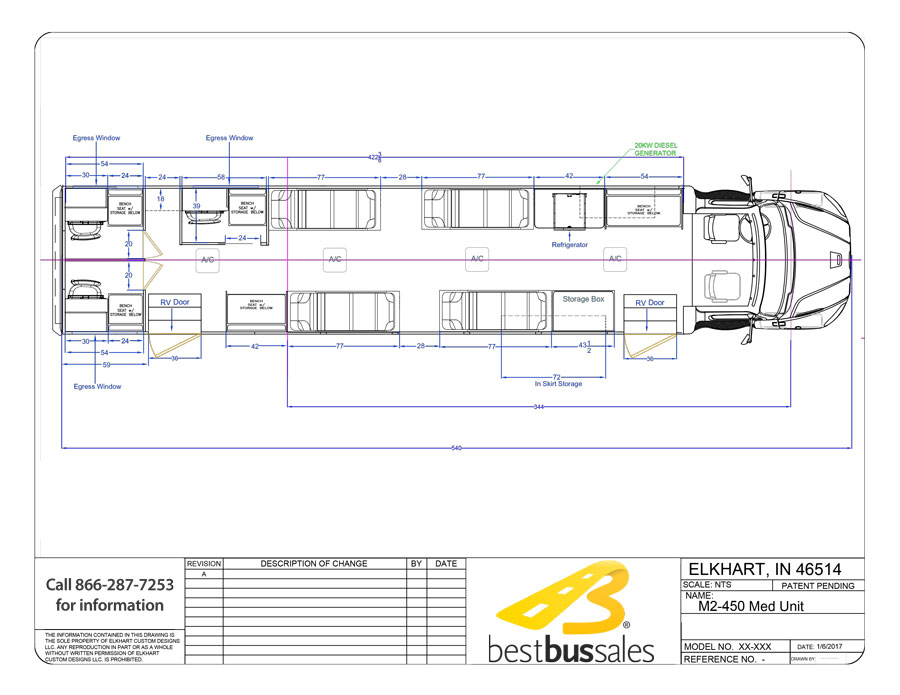

M2-450 45-ft Bloodmobile Interior

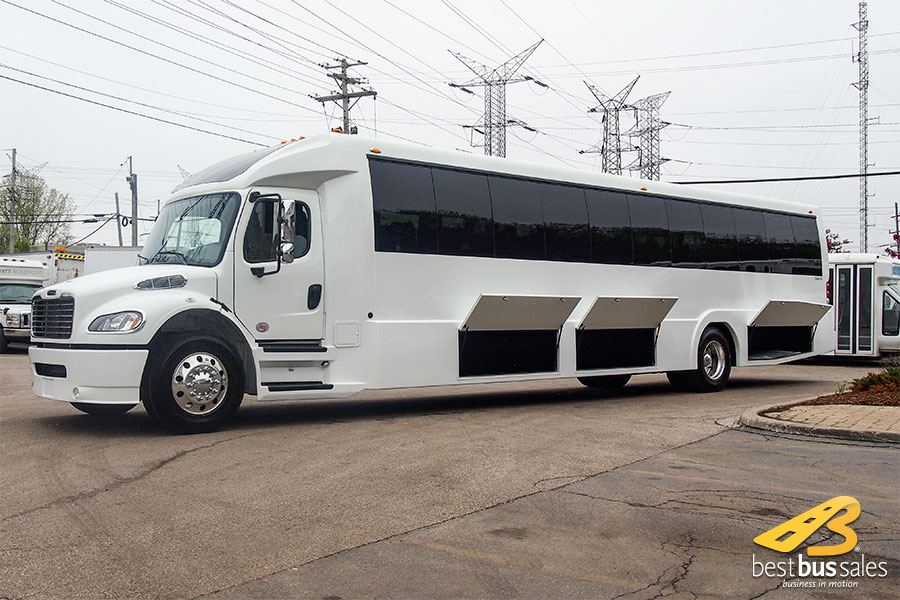

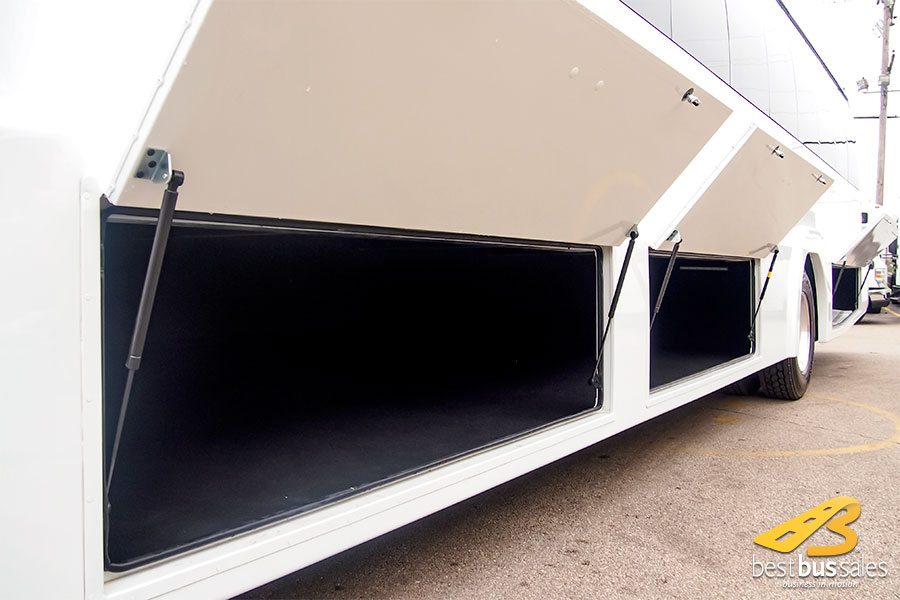

M2 Chassis with Under‑Cabin Storage
The 3 – 4 chair M2 Bloodmobile is also available with below deck storage, providing ample room for luggage, signage, and everything you'll need for a successful Blood Donation Campaign.
Mobile Stroke Unit Vehicles | Quality of Life Services
Mobile Stroke Unit (MSU) Vehicles provide cities and counties with a method of reaching stroke victims faster, potentialy within the crucial first hour of episode.
On-board CT scanning provides technicians with real time diagnoses and treatment options, stabilizing patients before they reach an emergency care center. As this practice becomes
more widely available, it will benefit stroke victims distant from treatment facilities to help prevent permanent damage from event escalation.
Built on the reliable Freightliner M2 chassis, with a Cummins diesel power plant, our MSU is fit with portable generators and high current batteries to provide
continuous uninteruptable power to onboard dianostic systems. The built‑in CT Scanner provides primary stroke diagnostics, along with ancillary equipment normally available only in a critical care facility.
