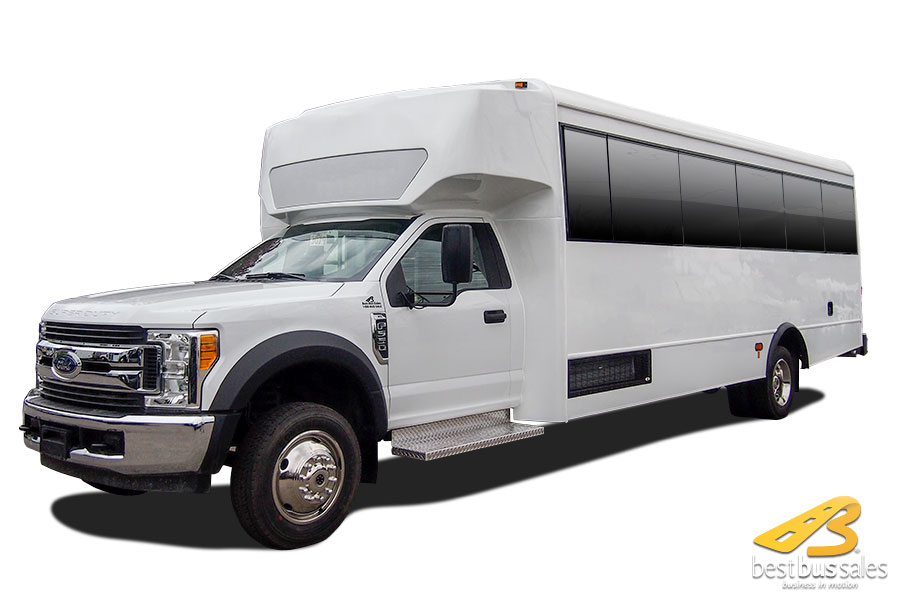

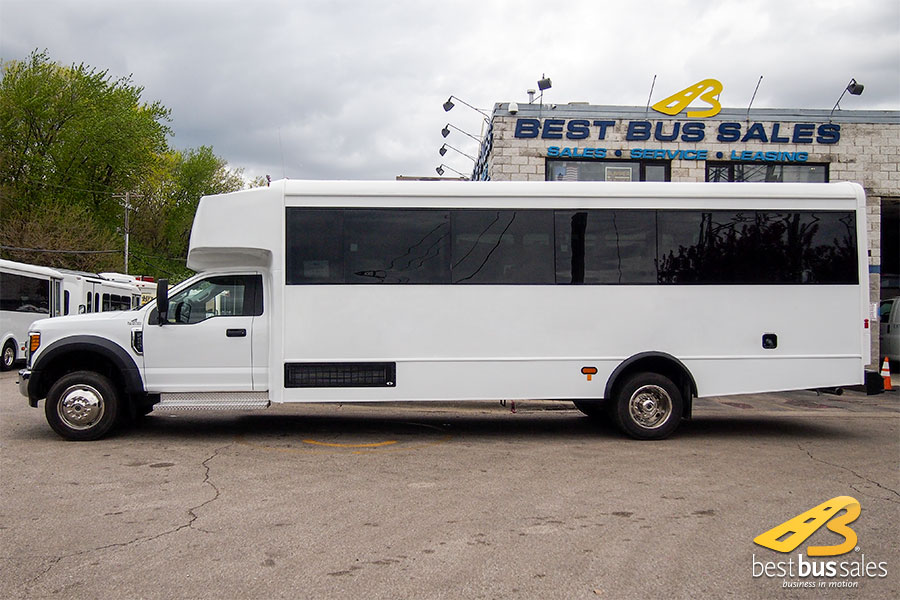

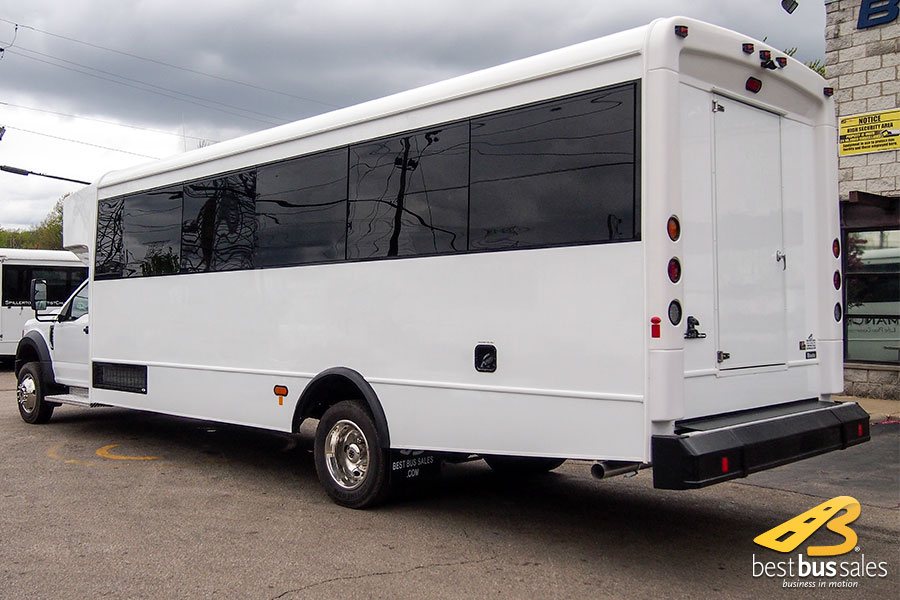

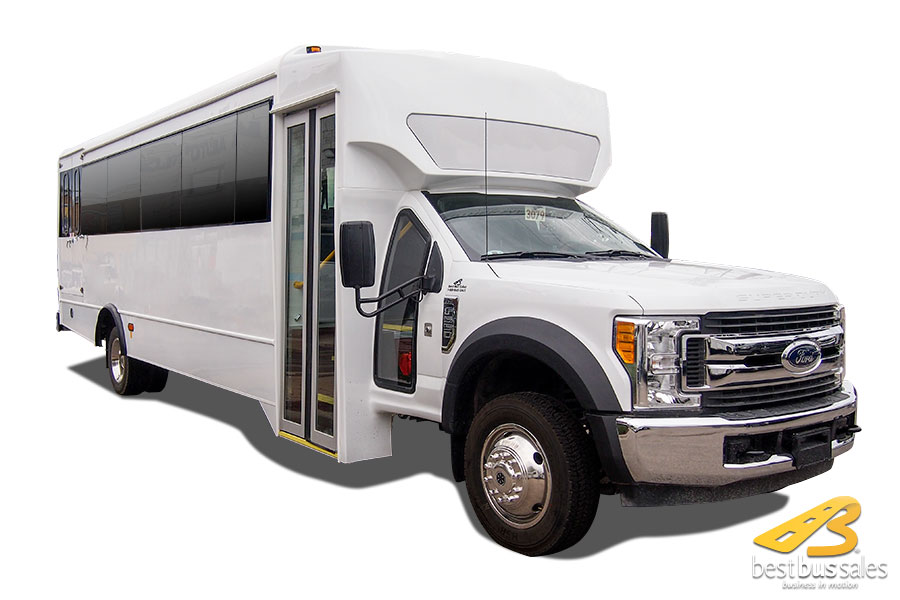

Glaval Entourage — Seating for up to 33 Passengers
The Entourage delivers superior quality and versatility— built on the rugged Ford F-550 Super Duty chassis. The Entourage is both economical and flexible enough to suit any of your transportation solutions. If ADA equipment is required, a wide range of floor plan configurations with a wheelchair lift are available. With it’s impressive sleek and aerodynamic styling, the Entourage is both brawn and beauty!
Chassis Specifications
- Engine:
- Diesel: 6.7L Power Stroke V-8 Turbo;
390 HP; 735 lb-ft
- Gasoline: 6.8L 3V SEFI V-10; 362 HP;
457 lb-ft
- G.V.W.R.:19,500 lbs.
- Alternator:
- Diesel: Dual Alternator 200 amp & 157 amp (357 amps combined)
- Gasoline: Single Alternator 157 amp
- Fuel System:
- Diesel: Dual Tanks: 40 Gallon and 28 Gallon (68 Gallons combined, includes switch on dash)
- Gasoline: Single Tank: 40 Gallons
- Alternative Fuel (Diesel only): B-20 Capable CNG Option
- Transmission:
- Diesel: Heavy Duty TorqShift 6-Speed Select Shift Automatic
- Gasoline: TorqShift 5-Speed Automatic
- Parking Brake: Foot operated, Hand Release
- Wipers: Intermittent
- Battery:
- Diesel: 2 Batteries 1500 CCA (750 each)
- Gasoline: 2 Batteries 1300 CCA (650 each)
- Cruise Control: Standard
- High Idle: Standard
- Power Steering: Standard
- Wheels: Dual Rear Wheels (19.5"), Six, 10-Whole Disc, 19.5" x 6" RW Steel (Gray)
- Tires: Steel-Belted Radial, All-Season Tires, Continental BSW 225/70 R x 19.5G
- Headlamps: Halogen
- Engine Block Heater: Standard (diesel)
- Running Lights: Daytime
- Driver's Air Bag: Standard
- Brakes: Front & Rear Disc
- Anti-Lock: 4-Wheel
- Traction Control: Engine Only
- Hill Start Assist: Standard
- Stereo: AM/FM/CD/MP3 w/Digital Clock and 8 speakers
- Bumper/Grill: Chrome
- Air: Automotive
- Tow Hooks: Front
- Driver's Seat: OEM HD Vinyl, Manual
- Exhaust:
- Diesel: Roadside Routed, Aluminized Steel
- Gasoline: Curbside Routed, Aluminized Steel
Model Specifications
- Chassis: Ford F-550 Super Duty
- Wheelbase: 201-, 228-, and 252-inches
- Front Axle Rating: 7,000
- Rear Axle Rating: 14,760
- Overall Length (Bumper to Bumper):
27-, 29-, 31-, 32-, and 33-ft.
- Overall Width: 96"
- Overall Height: 120" (excludes escape hatch or roof A/C)
- Front Overhang: 37-3/8"
- Interior Height: 78"
- Interior Width: 92"
- Floor Height from Ground: 42-1/2"
- Aisle Width: 18"
- Clear Door Opening: 30"
- Ground to First Step: 10-1/4"
- Step Riser: 9-5/8"
- Step Tread: 10"
- Step Width: 34"
Paratransit Options
- ADA Lighting (Lift and Door)
- ADA Signs
- Double Doors (Lift)
- Belt Storage Box
- Interlock System

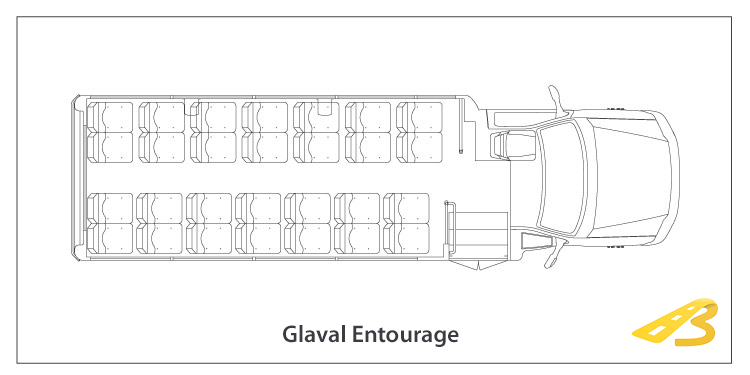

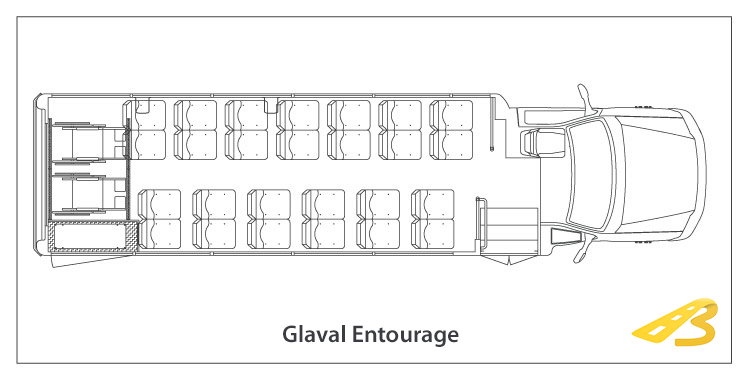

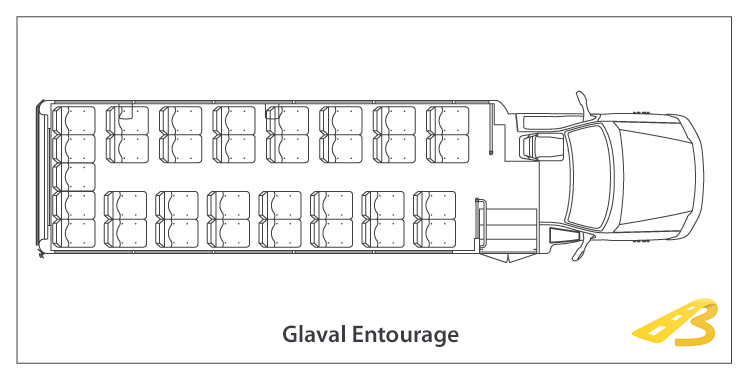

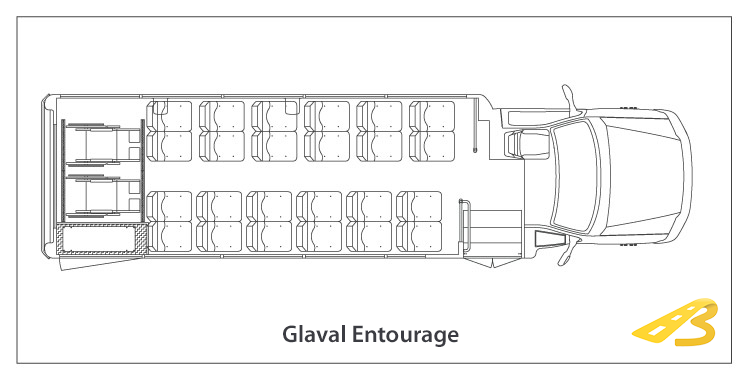

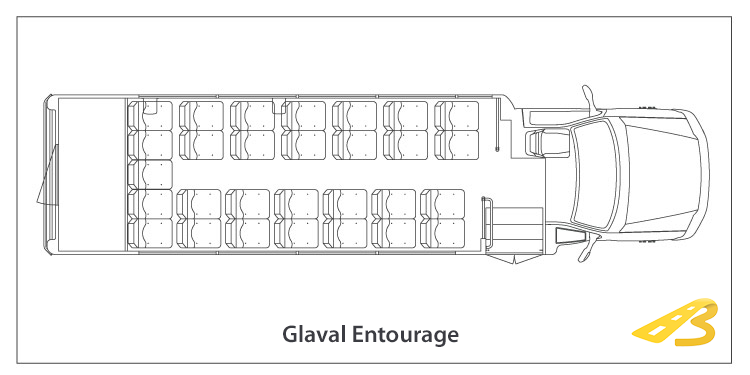

Entourage Floor Plans
Glaval Entourage 29-ft, Rear Lift, 20 Pax + Driver
Glaval Entourage 29-ft, No Lift, 28 Pax + Driver
Glaval Entourage 32-ft, Rear Lift, 24 Pax + Driver
Glaval Entourage 33-ft, No Lift, 33 Pax + Driver
Glaval Entourage 33-ft, No Lift, 29 Pax + Driver
Glaval Entourage 33-ft, Rear Lift, 26 Pax + Driver
Standard Conversion Features
- "Steel-Safe" Constructed Floor, Roof and Sidewalls
- Galvanized Steel Floor Frame
- Galvanized Steel Stepwell
- Galvanized, All Structure
- 5/8" Treated Marine Grade Plywood Flooring
- Gray Koroseal Commercial Flooring w/Ribbed Aisle
- Cove Molding
- Vacuum Laminated Construction, Side and Rear
- Fiberglass Front Cap
- Fiberglass Composite Roof
- T-Slide Windows
- Full View Curb Window
- Electric Panel w/Diagnostic Fuses
- LED Stepwell Lights
- Vinyl Clad Lauan Ceiling & Interior Sidewalls
- Track Seating
- Flat Floor
- Curbside Entrance Modesty Panel & Stanchion
- Rear Center Brake Light (LED)
- Rear Mud Shield
- Steel Rear Bumper (Powder Coated)
- Window Drip Rails
- Rub Rails
- White Exterior
- Foamed In-Place Roof Insulation
- Front End Alignment (Toe-In, Toe Out)
- Under-Coating with Warranty
- Side Directional Lights (Incandescent)
- Driver's Side Diamond Plate
- Cab Mounted Entry Step
- Electric Door, 30" w/Ext. Key Switch
- Side Mounted Rear View Mirrors (Manual)
5 year/100,000 mile limited conversion warranty. Specifications and options are subject to change without notice.
