the most accessible school bus in the industry

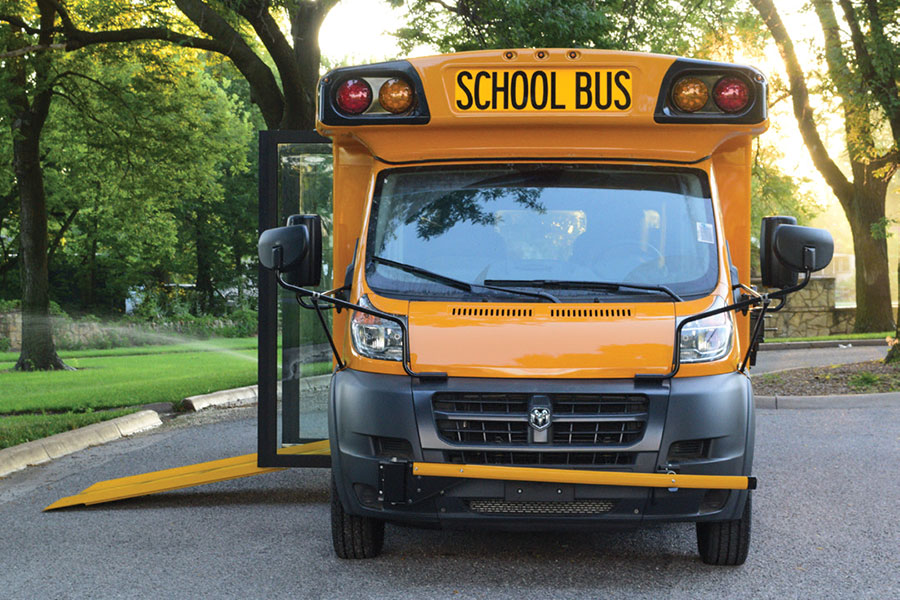

The future is now when it comes to equal access and accessibility for all passengers utilizing the latest Collins Bus design. Built on the fuel-efficient front-wheel drive RAM ProMaster chassis, the Collins Bus Low-Floor is truly the most accessible mode of school bus transportation in the industry. No lifts. No multiple step entrances.
Features
- Maximum passenger capacity of 12* and a wheelchair capacity of 3* (see floor plans)

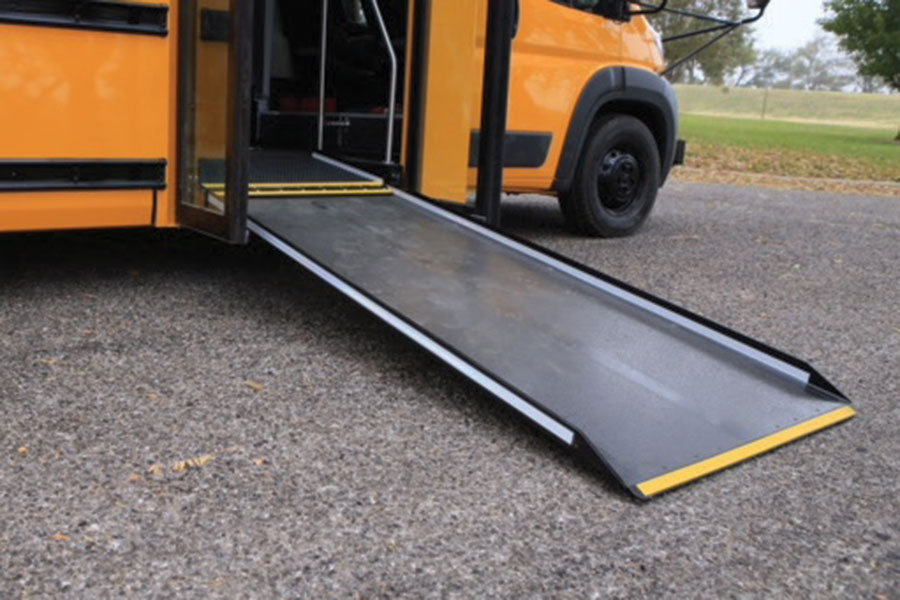

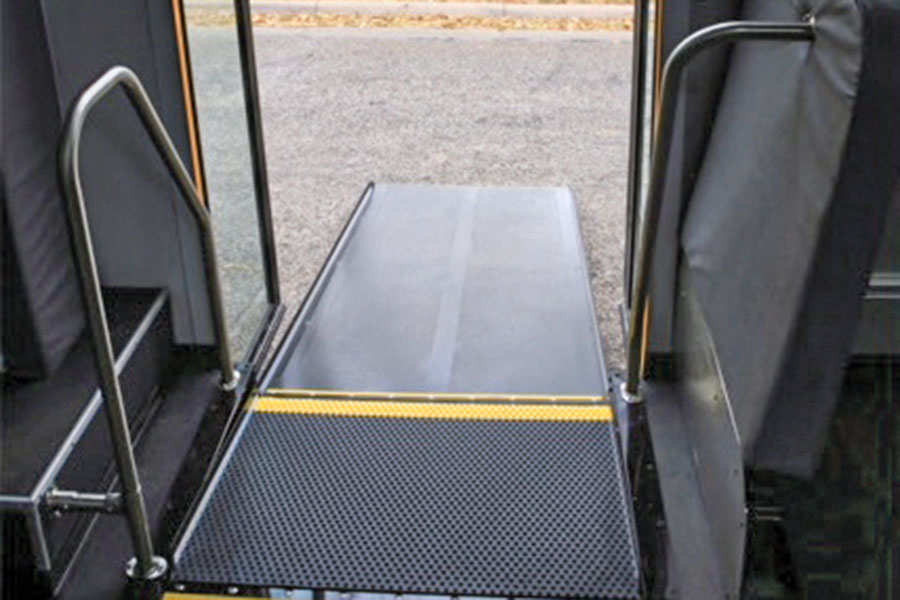

- Integrated 1:6 slope ramp design view-out window reduces blind-spots
- Innovative structural design provides unparalleled safety and features an exclusive one-piece tubular roof bow design
- Complies with School Bus and ADA requirements
- 5-Year body warranty and limited lifetime paint warranty
Specifications
- Model
- LH516WF
- Maximum Passenger Capacity
- 12*
- Maximum Seating Rows
- 4
- Interior Height 6" from Sidewall
- 74"
- Interior Height at Center Aisle
- 77"
- Interior Width
- 91"
- Electric Entrance Door
- 42" × 82"
- Overall Height
- 115"
- Overall Length with Bumper
- 284"
- Overall Width with No Mirrors
- 96"
- Wheelbase
- 188"
- GVWR
- 9,350
Standard Chassis Equipment
- Model
- RAM ProMaster 3500
- Engine
- 3.6L Gas V6
- Transmission
- 6-Speed Auto w/HD Overdrive
- Fuel Tank
- 24 Gallon
- Brakes
- Power, Self-Adjusting w/4 Wheel Disk Anti-lock
- Alternator
- 200 Amp Gas
- Battery
- Single 800 CCA
Standard Body Equipment
- Galvanized Steel Structure
- One-Piece HSLA Tubular Steel Roof Bows
- 1/2" Marine-Grade Plywood Flooring
- LED Interior Dome lights
- LED Stop/Tail/Turn/Backup Lights
- Tinted 36" × 30" Split Sash Windows w/12” Opening
- Rear view
- Electric Entrance Door
Popular Options
- 3-Point Seats
- 5/8" Marine-Grade Plywood Floor
- AM/FM/BT Radio
- Backup Alarm
- Backup Camera
- Colored Flooring
- Interior Mirrors
- Egress Window
- Rear Heater
- Rear In-Wall A/C
- Reverse Backup Sensors
- Roof Escape Hatch
- Spare Tire

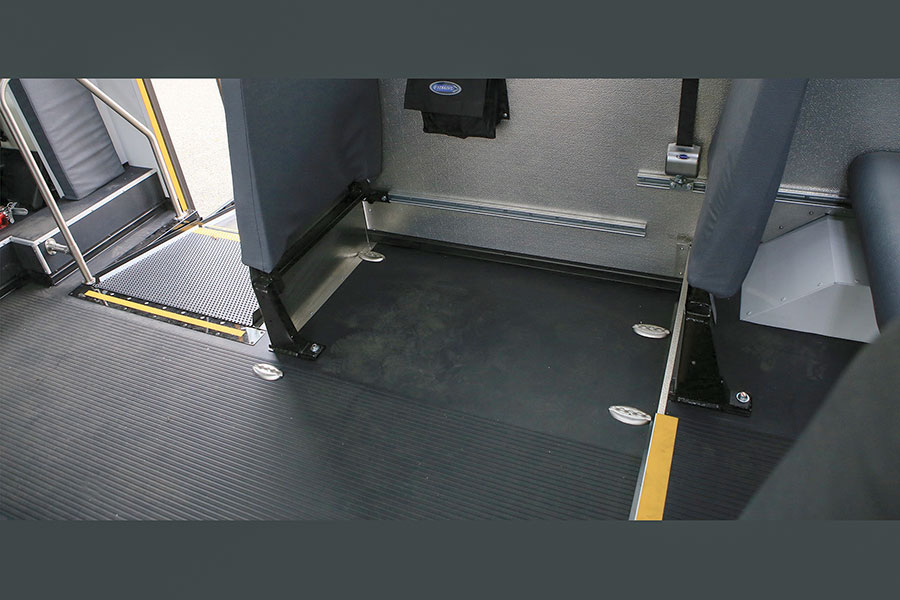

- Floor Seat Track
Collins Low Floor Bus Makes an Incredible Difference
Floor Plan Options for Collins Low Floor School Bus
PH508WF (School Bus) 12 Passengers / No Wheelchairs
P23WF (Commercial) 10 Passengers / No Wheelchairs
P23WF (Commercial) 10 Passengers + 1 Wheelchair
PH508WF (School Bus) 10 Passengers + 2 Wheelchairs
P23WF (Commercial) 8 Passengers + 1 Wheelchair
P23WF (Commercial) 8 Passengers + 2 Wheelchairs
PH508WF (school Bus) 8 Passengers + 3 Wheelchairs
P23WF (Commercial) 6 Passengers + 3 Wheelchairs
